stw::Collider Class Reference

A pure virtual struct that represents colliders. More...

#include <Collider.hpp>

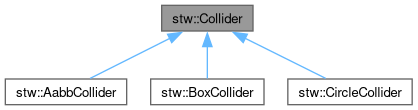

Inheritance diagram for stw::Collider:

Collaboration diagram for stw::Collider:

Public Member Functions
	Collider ()=default
	Collider (Collider &&col) noexcept=default
virtual	~Collider ()=default
Collider &	operator= (Collider &&col)=default
Collider &	operator= (const Collider &col)=default
	Collider (const Collider &col)=default
virtual Manifold	TestCollision (const Transform *transform, const Collider *collider, const Transform *colliderTransform) const =0
	Tests the collision against a generic collider.
virtual Manifold	TestCollision (const Transform *transform, const BoxCollider *collider, const Transform *boxTransform) const =0
	Tests the collision against a box collider.
virtual Manifold	TestCollision (const Transform *transform, const CircleCollider *collider, const Transform *circleTransform) const =0
	Tests the collision against a circle collider.
virtual Manifold	TestCollision (const Transform *transform, const AabbCollider *collider, const Transform *aabbTransform) const =0
	Tests the collision against a aabb collider.
virtual Vector2	FindFurthestPoint (const Transform *transform, const Vector2 &direction) const =0
	Find the furthest point in the specified direction.
virtual Vector2	GetBoundingBoxSize () const =0
	Gets the size of the box that surrounds the collider.

Public Attributes
Vector2	center {}
	The center of the collider.

Detailed Description

A pure virtual struct that represents colliders.

Constructor & Destructor Documentation

Collider() [1/3]

stw::Collider::Collider ( )

default

Collider() [2/3]

stw::Collider::Collider ( Collider && col )

defaultnoexcept

~Collider()

virtual stw::Collider::~Collider ( )

virtualdefault

Collider() [3/3]

stw::Collider::Collider ( const Collider & col )

default

Member Function Documentation

FindFurthestPoint()

virtual Vector2 stw::Collider::FindFurthestPoint ( const Transform * transform, const Vector2 & direction ) const

pure virtual

Find the furthest point in the specified direction.

Parameters

transform	The transform of this collider.
direction	Direction in which to find the furthest point.

Returns

The furthest point.

Implemented in stw::BoxCollider, stw::CircleCollider, and stw::AabbCollider.

GetBoundingBoxSize()

virtual Vector2 stw::Collider::GetBoundingBoxSize ( ) const

pure virtual

Gets the size of the box that surrounds the collider.

Returns

The bounding box of the collider.

Implemented in stw::BoxCollider, stw::CircleCollider, and stw::AabbCollider.

operator=() [1/2]

Collider & stw::Collider::operator= ( Collider && col )

default

operator=() [2/2]

Collider & stw::Collider::operator= ( const Collider & col )

default

TestCollision() [1/4]

virtual Manifold stw::Collider::TestCollision ( const Transform * transform, const AabbCollider * collider, const Transform * aabbTransform ) const

pure virtual

Tests the collision against a aabb collider.

Parameters

transform	The transform of this collider.
collider	The circle collider to collide with.
aabbTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implemented in stw::CircleCollider, stw::AabbCollider, and stw::BoxCollider.

TestCollision() [2/4]

virtual Manifold stw::Collider::TestCollision ( const Transform * transform, const BoxCollider * collider, const Transform * boxTransform ) const

pure virtual

Tests the collision against a box collider.

Parameters

transform	The transform of this collider.
collider	The box collider to collide with.
boxTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implemented in stw::BoxCollider, stw::CircleCollider, and stw::AabbCollider.

TestCollision() [3/4]

virtual Manifold stw::Collider::TestCollision ( const Transform * transform, const CircleCollider * collider, const Transform * circleTransform ) const

pure virtual

Tests the collision against a circle collider.

Parameters

transform	The transform of this collider.
collider	The circle collider to collide with.
circleTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implemented in stw::BoxCollider, stw::CircleCollider, and stw::AabbCollider.

TestCollision() [4/4]

virtual Manifold stw::Collider::TestCollision ( const Transform * transform, const Collider * collider, const Transform * colliderTransform ) const

pure virtual

Tests the collision against a generic collider.

Parameters

transform	The transform of this collider.
collider	The collider to collide with.
colliderTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implemented in stw::BoxCollider, stw::CircleCollider, and stw::AabbCollider.

Member Data Documentation

center

Vector2 stw::Collider::center {}

The center of the collider.

---

The documentation for this class was generated from the following file:

• include/collision/Collider.hpp
