stw::CircleCollider Class Reference

A circle collider. More...

#include <Collider.hpp>

Inheritance diagram for stw::CircleCollider:

Collaboration diagram for stw::CircleCollider:

Public Member Functions
	CircleCollider ()=default
	CircleCollider (float radius)
Manifold	TestCollision (const Transform *transform, const Collider *collider, const Transform *colliderTransform) const override
	Tests the collision against a generic collider.
Manifold	TestCollision (const Transform *transform, const BoxCollider *collider, const Transform *boxTransform) const override
	Tests the collision against a box collider.
Manifold	TestCollision (const Transform *transform, const CircleCollider *collider, const Transform *circleTransform) const override
	Tests the collision against a circle collider.
Manifold	TestCollision (const Transform *transform, const AabbCollider *collider, const Transform *aabbTransform) const override
	Tests the collision against a aabb collider.
Vector2	FindFurthestPoint (const Transform *transform, const Vector2 &direction) const override
	Find the furthest point in the specified direction.
Vector2	GetBoundingBoxSize () const override
	Gets the size of the box that surrounds the collider.
Public Member Functions inherited from stw::Collider
	Collider ()=default
	Collider (Collider &&col) noexcept=default
virtual	~Collider ()=default
Collider &	operator= (Collider &&col)=default
Collider &	operator= (const Collider &col)=default
	Collider (const Collider &col)=default

Public Attributes
float	radius = 0
	Radius of the circle.
Public Attributes inherited from stw::Collider
Vector2	center {}
	The center of the collider.

Detailed Description

A circle collider.

Constructor & Destructor Documentation

CircleCollider() [1/2]

stw::CircleCollider::CircleCollider ( )

default

CircleCollider() [2/2]

stw::CircleCollider::CircleCollider

(

float

radius

)

Member Function Documentation

FindFurthestPoint()

Vector2 stw::CircleCollider::FindFurthestPoint ( const Transform * transform, const Vector2 & direction ) const

overridevirtual

Find the furthest point in the specified direction.

Parameters

transform	The transform of this collider.
direction	Direction in which to find the furthest point.

Returns

The furthest point.

Implements stw::Collider.

Here is the call graph for this function:

GetBoundingBoxSize()

Vector2 stw::CircleCollider::GetBoundingBoxSize ( ) const

overridevirtual

Gets the size of the box that surrounds the collider.

Returns

The bounding box of the collider.

Implements stw::Collider.

TestCollision() [1/4]

Manifold stw::CircleCollider::TestCollision ( const Transform * transform, const AabbCollider * collider, const Transform * aabbTransform ) const

overridevirtual

Tests the collision against a aabb collider.

Parameters

transform	The transform of this collider.
collider	The circle collider to collide with.
aabbTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implements stw::Collider.

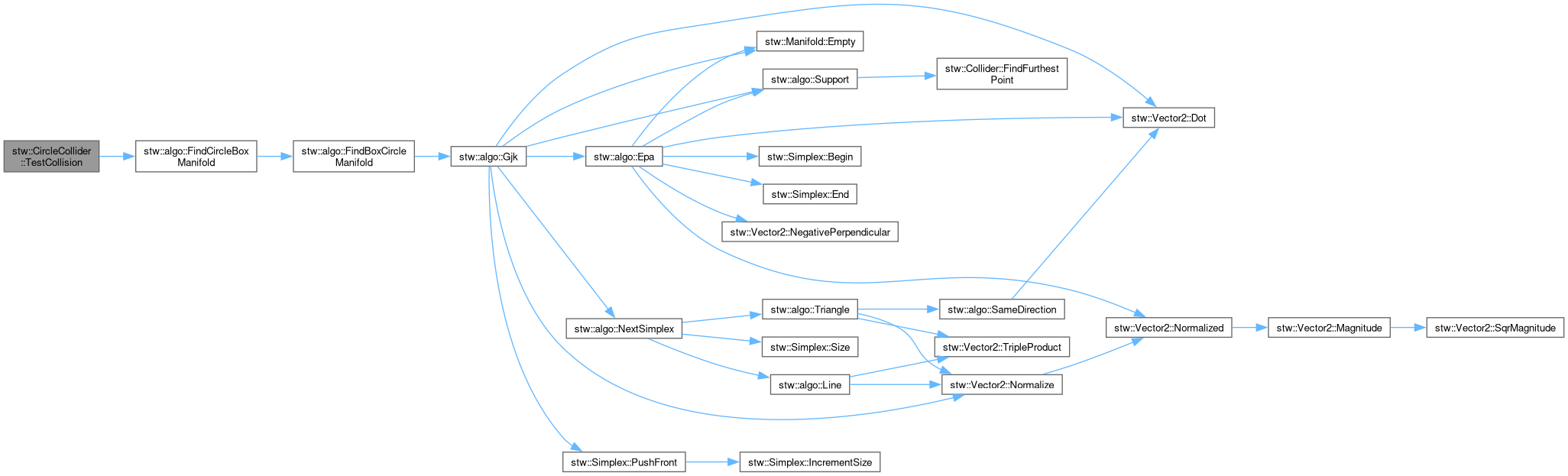

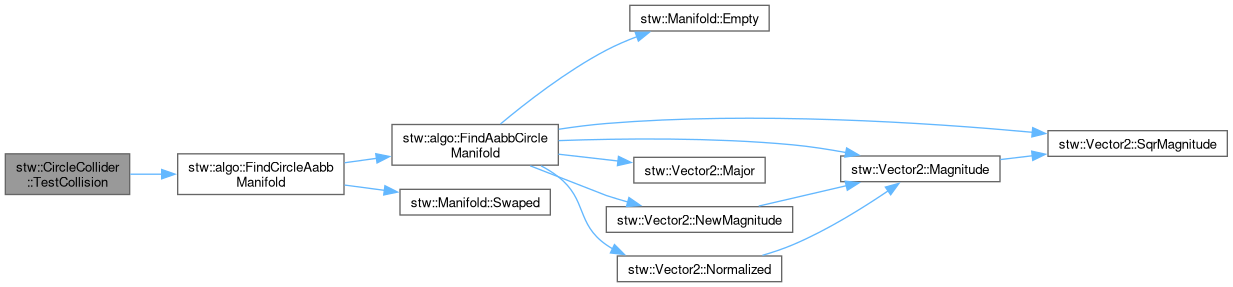

Here is the call graph for this function:

TestCollision() [2/4]

Manifold stw::CircleCollider::TestCollision ( const Transform * transform, const BoxCollider * collider, const Transform * boxTransform ) const

overridevirtual

Tests the collision against a box collider.

Parameters

transform	The transform of this collider.
collider	The box collider to collide with.
boxTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implements stw::Collider.

Here is the call graph for this function:

TestCollision() [3/4]

Manifold stw::CircleCollider::TestCollision ( const Transform * transform, const CircleCollider * collider, const Transform * circleTransform ) const

overridevirtual

Tests the collision against a circle collider.

Parameters

transform	The transform of this collider.
collider	The circle collider to collide with.
circleTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implements stw::Collider.

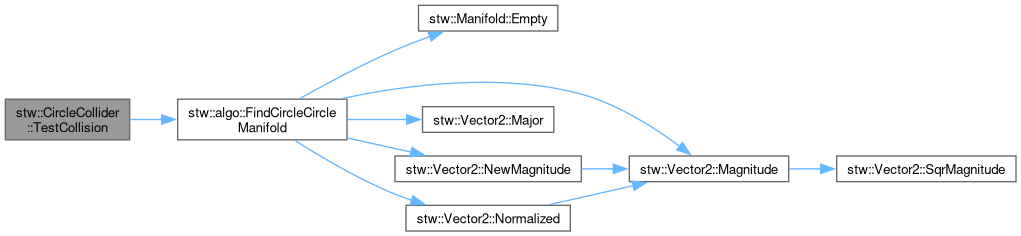

Here is the call graph for this function:

TestCollision() [4/4]

Manifold stw::CircleCollider::TestCollision ( const Transform * transform, const Collider * collider, const Transform * colliderTransform ) const

overridevirtual

Tests the collision against a generic collider.

Parameters

transform	The transform of this collider.
collider	The collider to collide with.
colliderTransform	The transform of the collider to collide with.

Returns

The manifold of that collision.

Implements stw::Collider.

Here is the call graph for this function:

Member Data Documentation

radius

float stw::CircleCollider::radius = 0

Radius of the circle.

---

The documentation for this class was generated from the following files:

• include/collision/Collider.hpp
• src/collision/Collider.cpp
