stw::CollisionWorld Class Reference

Represents a world where collisions can happen. It does not have dynamics, for this you will need the DynamicsWorld. More...

#include <CollisionWorld.hpp>

Inheritance diagram for stw::CollisionWorld:

Collaboration diagram for stw::CollisionWorld:

Public Member Functions
	CollisionWorld ()
	CollisionWorld (std::unordered_map< std::uint64_t, CollisionBody * > bodies, std::vector< Solver * > solvers)
void	AddCollisionBody (CollisionBody *body)
	Adds a collision body to the world.
void	RemoveCollisionBody (const CollisionBody *body)
	Removes a collision body to the world.
void	AddSolver (Solver *solver)
	Adds a solver to the world.
void	RemoveSolver (Solver *solver)
	Removes the solver from the world.
void	SetCollisionCallback (const std::function< void(Collision &, float)> &callback)
	Sets the collision callback of this world.
void	SolveCollisions (const std::vector< Collision > &collisions, float deltaTime) const
	Solves the collisions with the provided solvers.
void	SendCollisionCallbacks (std::vector< Collision > &collisions, float deltaTime) const
	Calls the callbacks of all the bodies in each collisions.
void	ResolveCollisions (float deltaTime)
	Resolves all the collisions that happened in this world.
void	FindCollisions (std::uint64_t firstId, std::uint64_t secondId, std::vector< Collision > &collisions, std::vector< Collision > &triggers)

Public Attributes
bool	useSpacePartitioning = true

Protected Attributes
std::unordered_map< std::uint64_t, CollisionBody * >	_bodies
std::vector< Solver * >	_solvers
BroadPhaseGrid	_grid
std::function< void(Collision &, float)	_onCollision )

Detailed Description

Represents a world where collisions can happen. It does not have dynamics, for this you will need the DynamicsWorld.

See also

DynamicsWorld

Constructor & Destructor Documentation

CollisionWorld() [1/2]

stw::CollisionWorld::CollisionWorld

(

)

CollisionWorld() [2/2]

stw::CollisionWorld::CollisionWorld	(	std::unordered_map< std::uint64_t, CollisionBody * >	bodies,
		std::vector< Solver * >	solvers )

Member Function Documentation

AddCollisionBody()

void stw::CollisionWorld::AddCollisionBody

(

CollisionBody *

body

)

Adds a collision body to the world.

Parameters

body	Body to add.

AddSolver()

void stw::CollisionWorld::AddSolver

(

Solver *

solver

)

Adds a solver to the world.

Parameters

solver

Solver to add.

FindCollisions()

void stw::CollisionWorld::FindCollisions	(	std::uint64_t	firstId,
		std::uint64_t	secondId,
		std::vector< Collision > &	collisions,
		std::vector< Collision > &	triggers )

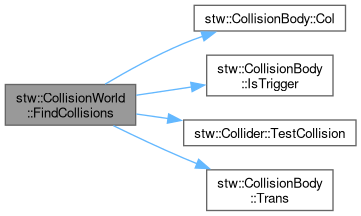

Here is the call graph for this function:

RemoveCollisionBody()

void stw::CollisionWorld::RemoveCollisionBody

(

const CollisionBody *

body

)

Removes a collision body to the world.

Parameters

body	Body to remove.

RemoveSolver()

void stw::CollisionWorld::RemoveSolver

(

Solver *

solver

)

Removes the solver from the world.

Parameters

solver

Solver to remove.

ResolveCollisions()

void stw::CollisionWorld::ResolveCollisions

(

float

deltaTime

)

Resolves all the collisions that happened in this world.

Parameters

deltaTime

Time elapsed since the last frame.

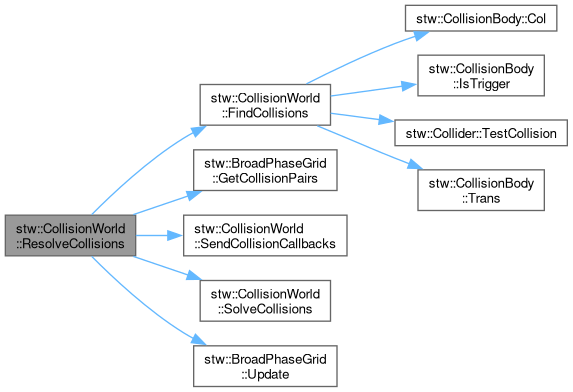

Here is the call graph for this function:

SendCollisionCallbacks()

void stw::CollisionWorld::SendCollisionCallbacks	(	std::vector< Collision > &	collisions,
		float	deltaTime ) const

Calls the callbacks of all the bodies in each collisions.

Parameters

collisions	Collisions to send callback from.
deltaTime	Time elapsed since the last frame.

SetCollisionCallback()

void stw::CollisionWorld::SetCollisionCallback

(

const std::function< void(Collision &, float)> &

callback

)

Sets the collision callback of this world.

Parameters

callback

Callback to set.

SolveCollisions()

void stw::CollisionWorld::SolveCollisions	(	const std::vector< Collision > &	collisions,
		float	deltaTime ) const

Solves the collisions with the provided solvers.

Parameters

collisions	Collisions to solve.
deltaTime	Time elapsed since the last frame.

Member Data Documentation

_bodies

std::unordered_map<std::uint64_t, CollisionBody*> stw::CollisionWorld::_bodies

protected

_grid

BroadPhaseGrid stw::CollisionWorld::_grid

protected

_onCollision

std::function<void(Collision&, float) stw::CollisionWorld::_onCollision)

protected

_solvers

std::vector<Solver*> stw::CollisionWorld::_solvers

protected

useSpacePartitioning

bool stw::CollisionWorld::useSpacePartitioning = true

---

The documentation for this class was generated from the following files:

• include/collision/CollisionWorld.hpp
• src/collision/CollisionWorld.cpp
